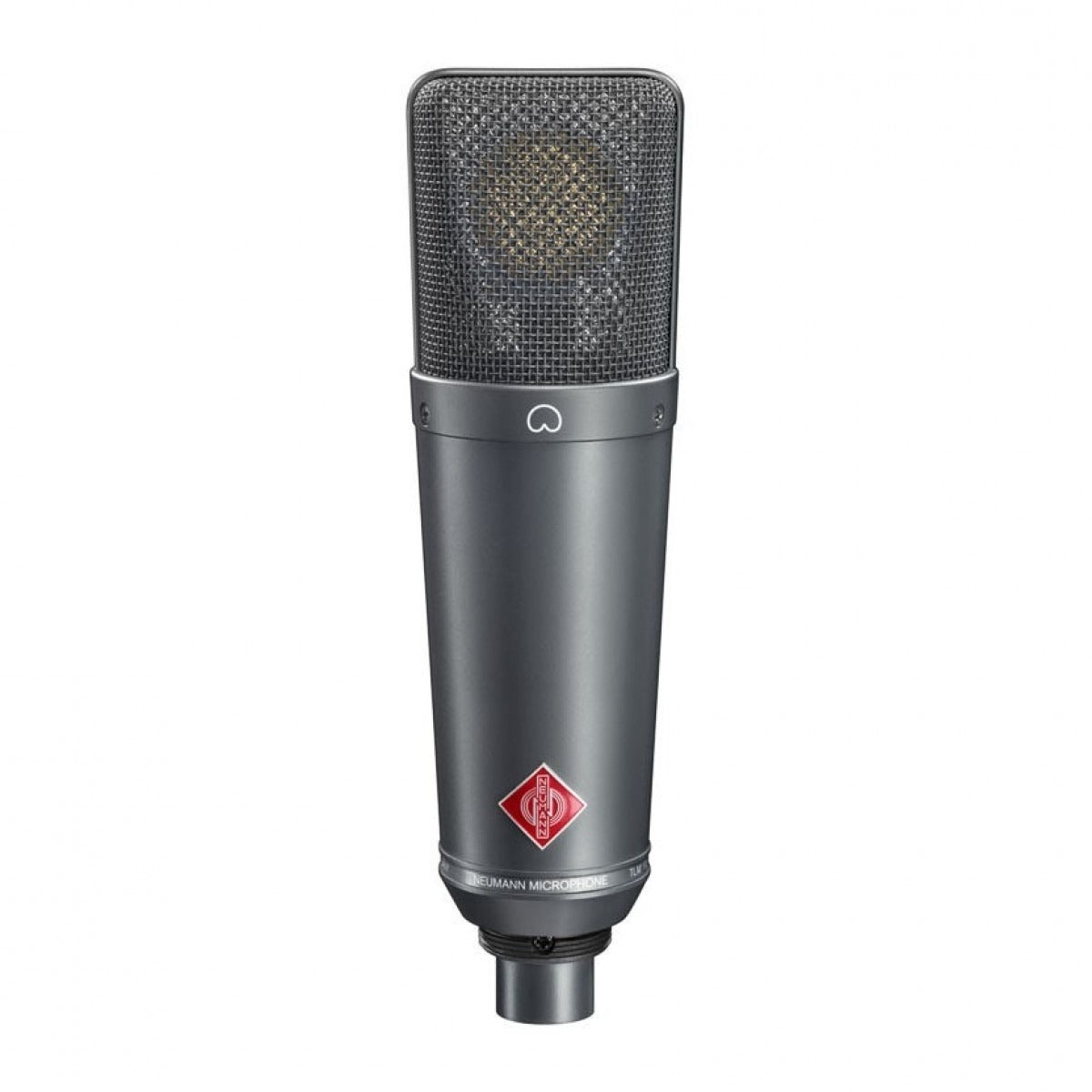

Neumann TLM 193 Studio Condenser Microphone

Full Description

Professional-quality components

Forgoing a traditional output transformer, the TLM 193 boasts an electronic circuit. Made from only the finest components, the circuitry's design ensures excellent rejection and prevents any interference that may compromise the quality of the balanced audio output. Thanks to the TLM 49's ability to handle SPLs of up to 130dB before distorting, the condenser microphone proves particularly excellent up-close on amplifiers, choirs and drums. Its full-frequency response ensures it will relay every single nuance without any compromises.

Features

• Large diaphragm cardioid microphone
• Pressure-gradient transducer
• Transformer less circuitry
• Extremely low noise: 10 dB (A)
• "Plug and play" microphone for professional studios, musicians and home recording applications
• High-quality professional equipment for mid-size budgets

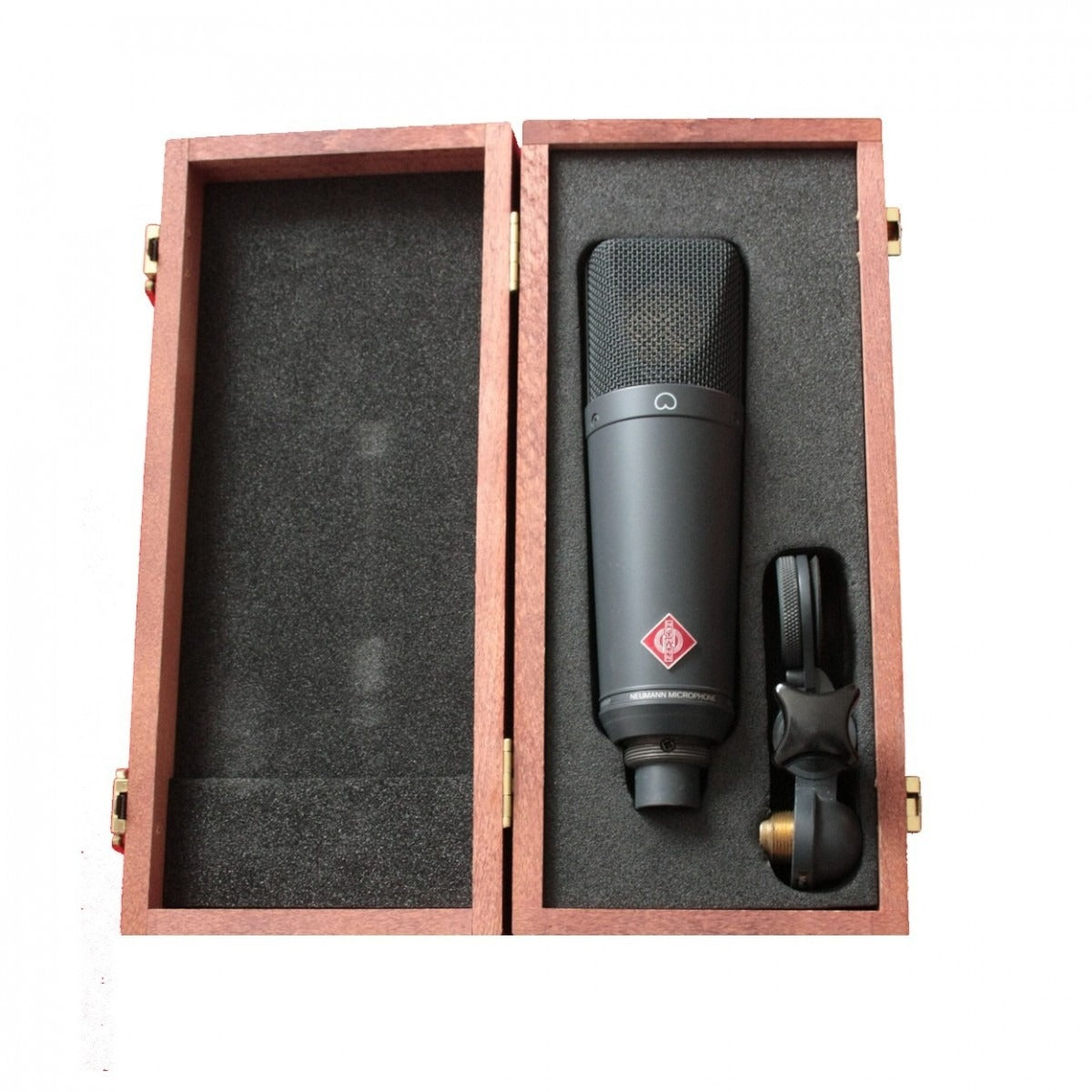

• Includes swivel mount

Specifications

• Acoustic Operating Principle: Pressure Gradient Transducer
• Directional Pattern: Cardioid
• Frequency Range: 20Hz - 20kHz
• Sensitivity: 18mV/Pa @ 1kHz into 1 Ohms
• Rated Impedance: 50 Ohms
• Rated Load Impedance: 1 kOhms
• Equivalent Noise Level, CCIR: 21dB
• Equivalent Noise Level, A-Weighted: 10dB-A
• Signal-to-Noise Ratio, CCIR: 73dB
• Signal-to-Noise Ratio, A-Weighted: 84dB
• Maximum SPL: 140dB
• Maximum Output Voltage: 13dBu
• Supply Voltage: 48V, ±4V
• Current Consumption: 3mA
• Connector: 3-Pin XLR
• Weight: 480g
