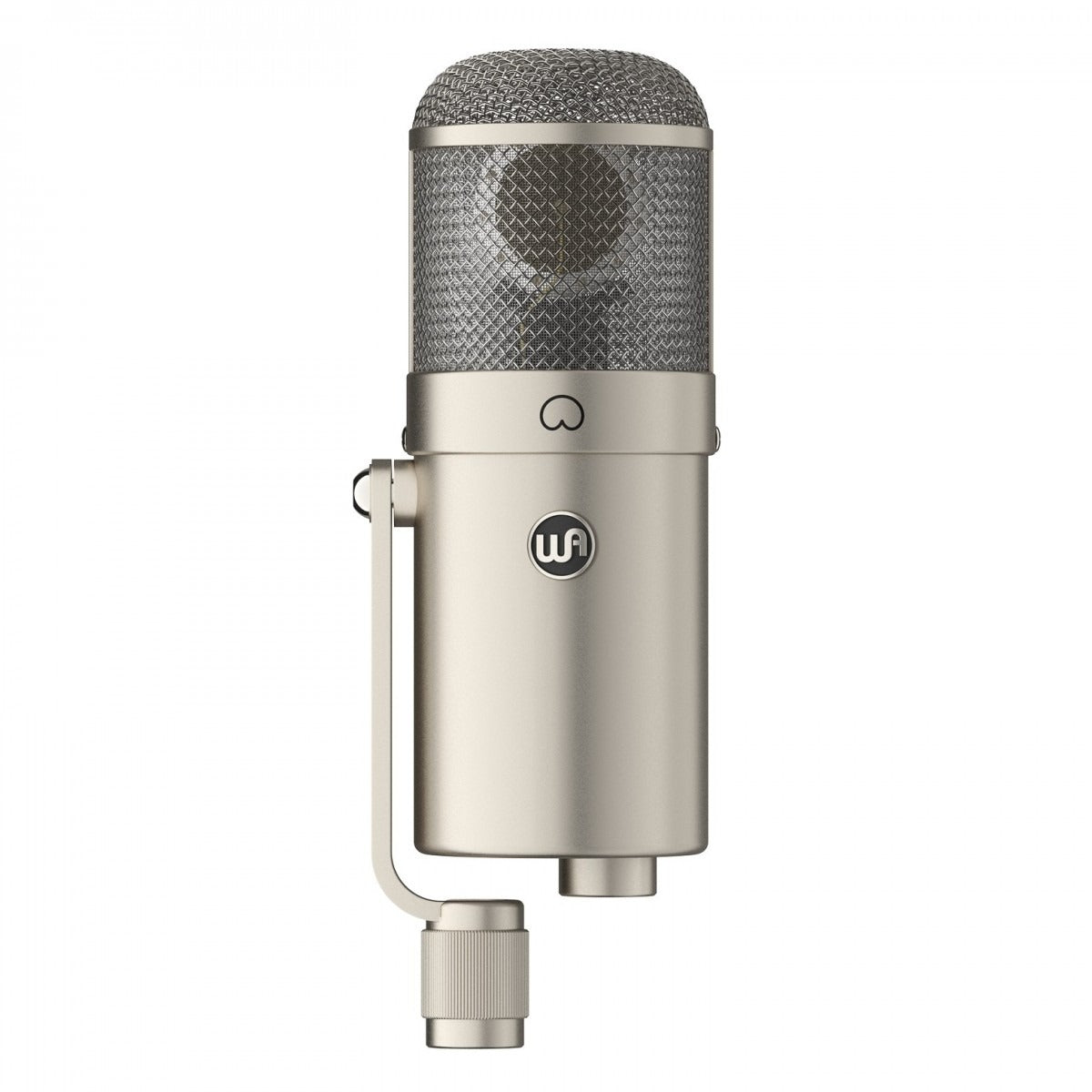

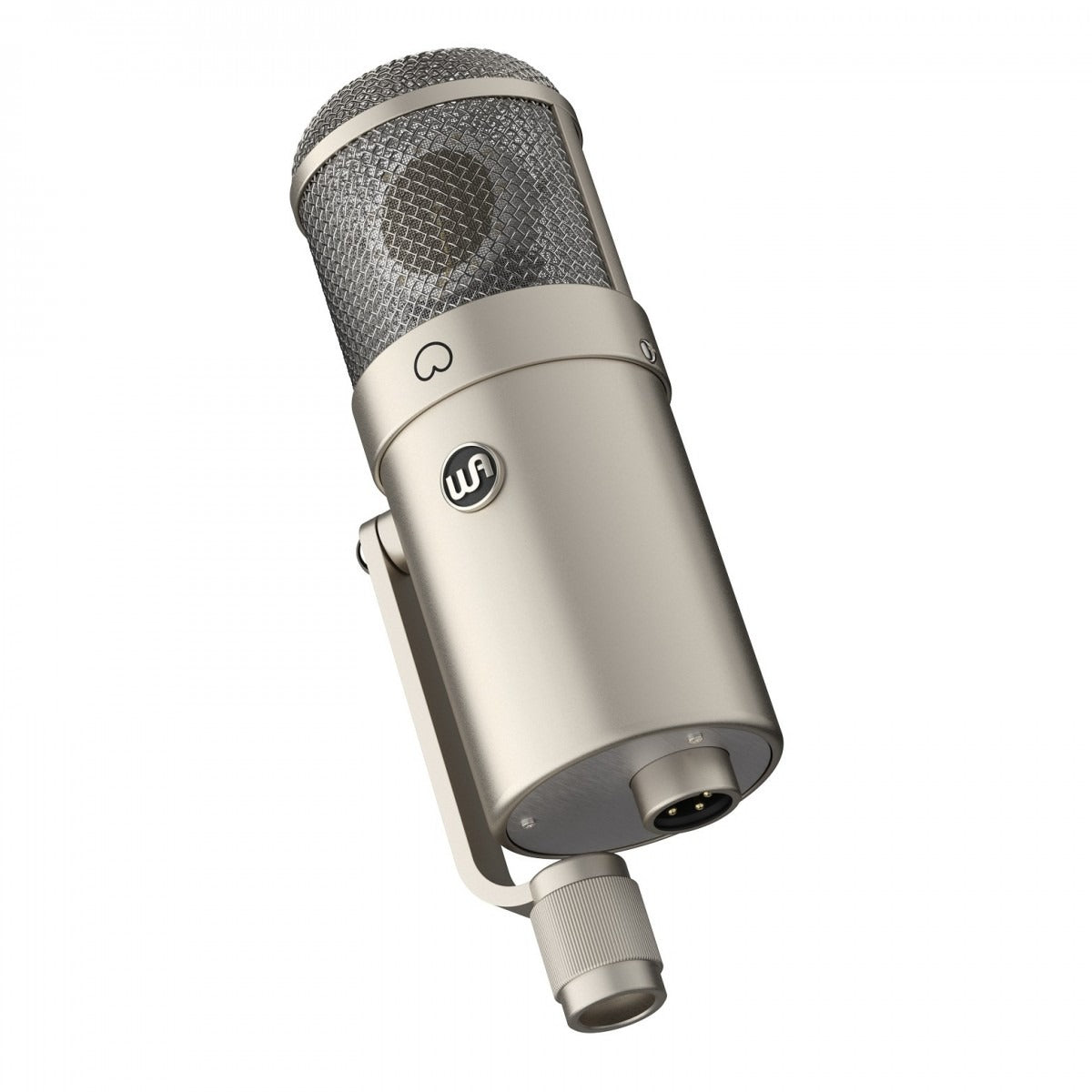

Warm Audio WA-47F Large Diaphragm FET Condenser Microphone

Full Description

The ‘secret weapon’ – a faithful recreation of a 47-style mic

Famed for its ability to capture sound sources in great detail (even at high volumes), the original 47-style mic design was a go-to for many recording artists and audio engineers. Found in countless mic lockers, the original microphone was regarded as the ‘secret weapon’ in music studios because of its versatile nature and rich sound. Meticulously recreated for the modern user, Warm Audio has built the microphone from the ground up using premium-quality components including a custom TAB-Funkenwek (AMI) transformer.

Utilising premium-grade Fairchild FETs with polystyrene and WIMA capacitors provide exceptional signal conversion for highly accurate sound reproduction. At its core, the WA-47F features a reproduced K47-style, single-backplate capsule. Providing an ultra-wide frequency response (20Hz – 19kHz) with a pronounced midrange and a slight scoop in the high-end; the capsule is perfect for capturing critical details – no matter the source.

Ideal for recording vocals, guitar cabs and kick drums

Carrying on its legacy of being highly versatile, the WA-47F is suitable for recording a range of sound sources including vocals, guitar/bass cabinets and kick drums. When micing up kick drums for recording, artists have generally used a 47-style microphone on the outside of the drum to capture the ‘thump’ from the drum. The original mic could capture the boom of the air pressure that dynamics mics could not.

Championed by the likes of Bon Scott (AC/DC) and David Lee Roth (Van Halen) and even Michael Stipe (REM); the original mic is revered for its attention to detail when recording vocals. From soft vocal harmonies to full-on, in-your-face screams; the WA-47F delivers a sound like no other. The WA-47F is also perfect for recording guitar and bass cabinets thanks to the ‘open’ design of the condenser capsule allowing the mic to capture high sound pressure levels without distortion.

What’s Included

• WA-47F Large Diaphragm FET Condenser Microphone
• Premium wooden box
• Hard mount

Features

• Faithful recreation of a classic 47-style FET microphone
• The ‘go-to’ microphone for any recording artist/studio engineer
• Ideal for recording vocals, bass drums and guitar/bass cabinets
• Delivers a rich and full-bodied sound
• Rich midrange with a detailed bass
• Can handle loud sound sources with a high SPL
• Fairchild FETs with polystyrene and WIMA capacitors for superior signal conversion

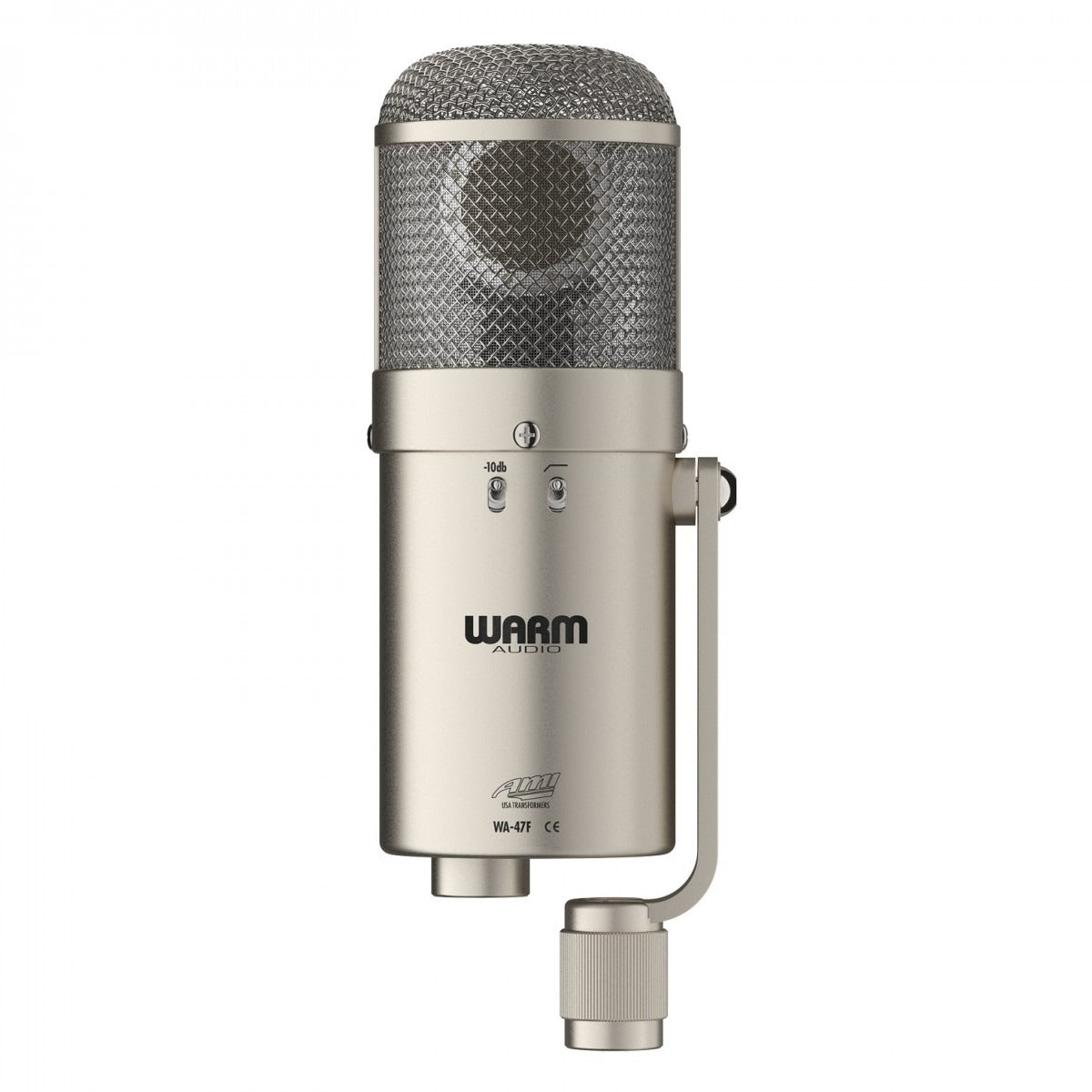

• Onboard -10dB pad and low-cut filter
• Faithfully reproduced K47-style capsule
• Custom TAB-Funkenwork (AMI transformer) helps to translate the sweet sonic character of the microphone
• Rugged nickel-plated brass body with expanded headbasket shape
• Five-year manufacturer warranty

Specifications

• Polar Pattern: Cardioid
• Max SPL: 137dB, 147dB With 10dB Pad Engaged
• Frequency Response: 20Hz-19kHz
• Output Impedance: 150 Ohms
• Rated Load Impedance: > 1kOhms
• Pads And Filters: -10dB Pad, 140 Hz Low-Cut Filter
• Signal-To-Noise Ratio (+ Weighted): 69 DB, 76 DB-A
• EIN / Self-noise (+ weighted): 25dB, 18 dB-A
• Total Weight: 1.58kg (3.5 lbs)
• Mic Weight: 0.9kg
