Korg Minilogue Limited Edition Inverted

Features

• Analog circuitry
• Digital multi-engine
• High quality digital effects
• Fully customizable user defined parameters
• Joystick pitch control
• Polyphonic step sequencer controlled
• Micro tuning

Specifications

• Keyboard: 37-keys (Slim-key, velocity sensitive)
• Sound Generation: Analog sound generator + Multi digital sound generator (Noise, VPM, User)
• Maximum Polyphony:
• 4 voices Programs 500 voices (more than 200 preload, 300 user programs)
• Each program provides a program sort function that includes voice mode settings. Favorite function built in.
• Voice Mode:
• 4 (POLY, UNISON, CHORD, ARP / LATCH)
• The VOICE MODE DEPTH setting allows different parameters to be varied for each mode
• Sequencer:
• 16-step polyphonic sequencer
• Motion sequence can be used on up to four parameters
• Main Synthesis Parameters: VCO1 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
• VCO2: Wave (Saw, Triangle, Square) Octave, Pitch, Shape
• Modulation: Sync, Ring, Cross Mod Depth
• Multi Engine: Noise/VPM/User, Type
• Mixer: VCO1, VCO2, Multi
• VCF: Cutoff, Resonance, Drive, Keytrack
• AMP Envelope Generator: Attack, Decay, Sustain, Release
• Envelope Generator: Attack, Decay, EG INT, Target, (Pitch, Pitch2, Cutoff)
• LFO: Wave (Saw, Triangle, Square) Mode (BPM, Normal, 1-shot) Rate, Int, Target (Pitch, Shape, Cutoff)
• Main effect Parameters: Effect type (Modulation, Reverb, Delay), ON/OFF, Time, Depth
• Multi Engine:
• Noise Generator: 4 types
• VPM oscillator: 16 types
• User oscillator: 16 slots
• MOD EFFECTS:
• CHORUS: 8 types
• ENSEMBLE: 3 types
• PHASER: 8 types
• FLANGER: 8 types
• DELAY: 12 types
• REVERB: 10 types
• Controls: Joy stick that can modify different parameters for each program, PORTAMENTO knob
• Display:

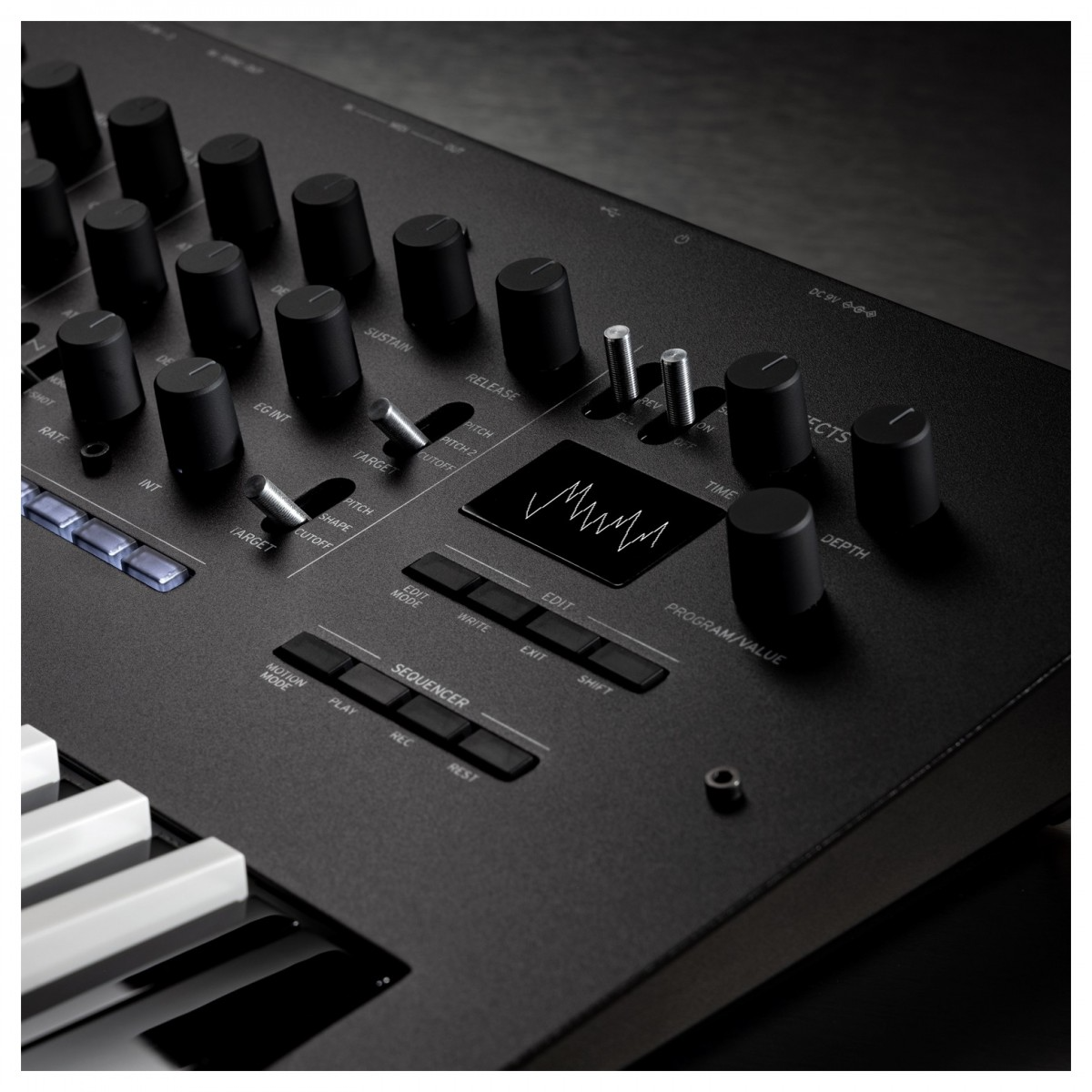

• Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
• Multi engine section: 7 segments x 6 digit LED display
• Input/Output connectors:
• Headphone jack (Stereo phone jack)
• OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
• CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
• SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
• SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
• MIDI IN jack
• MIDI OUT jack
• USB B jack
• Damper jack (half damper is not supported)
• Power Supply: AC adapter (DC9 V) (included)
• Power Consumption: 8 W
• Dimensions (W x D x H): 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
• Weight: 2.8 kg / 6.17 lbs.
