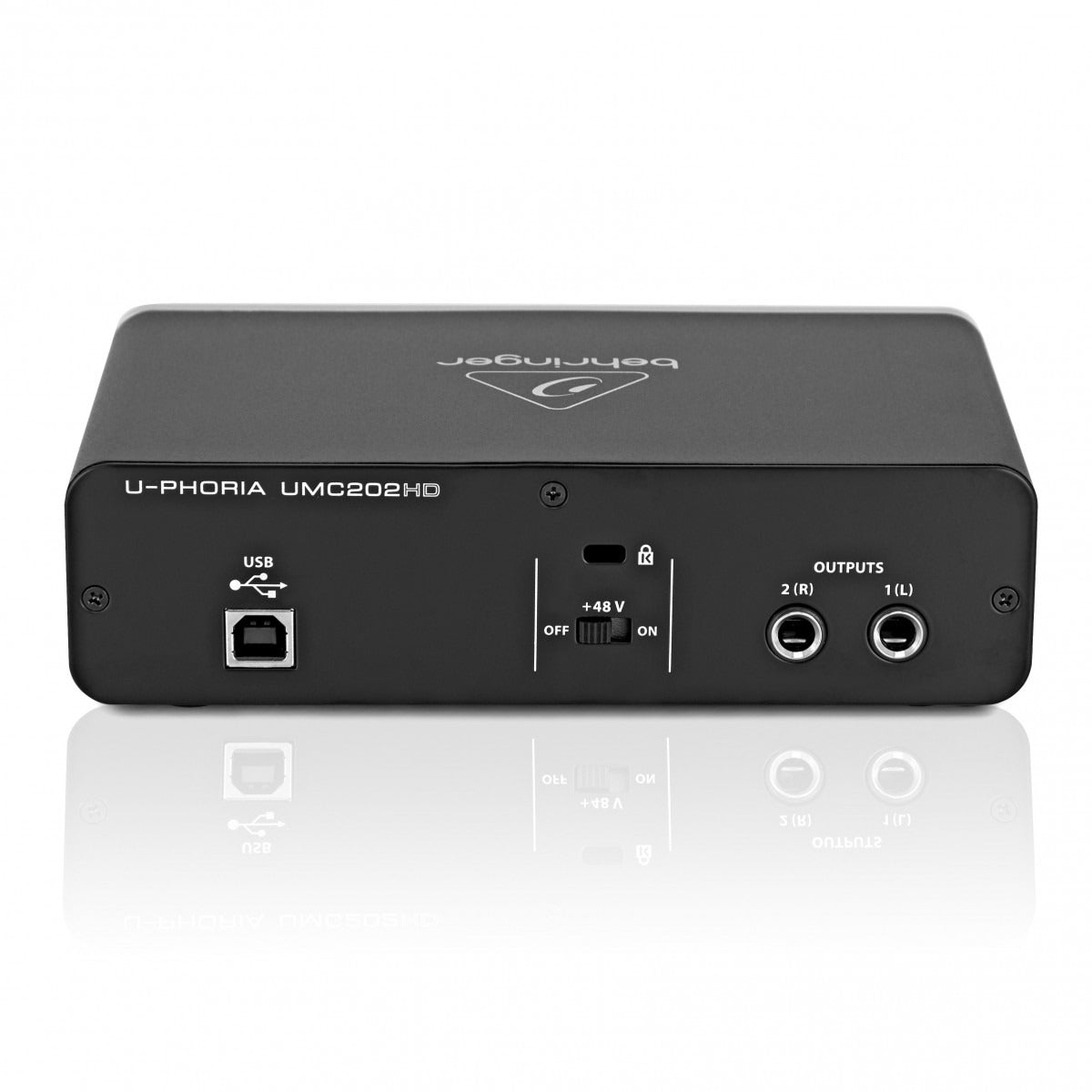

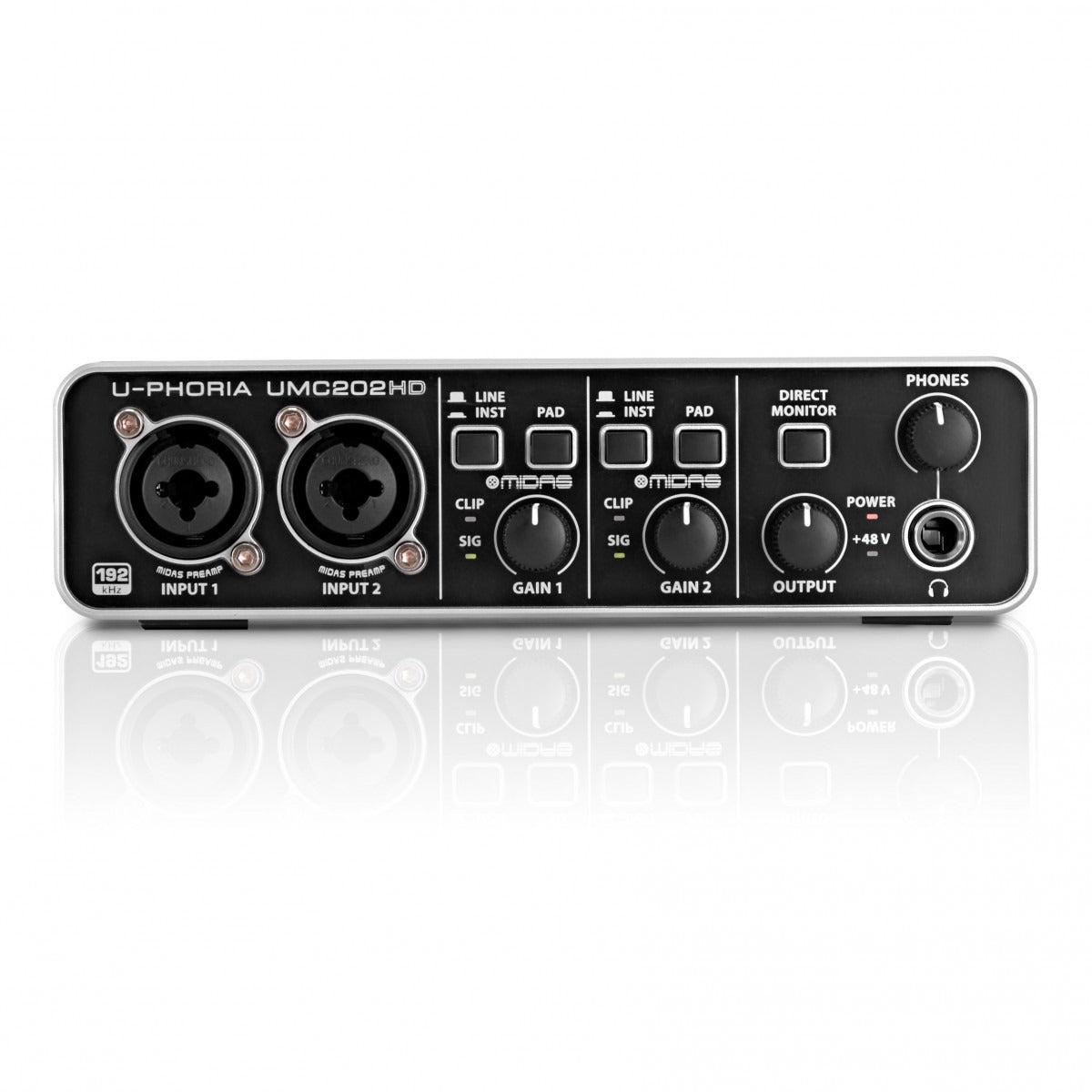

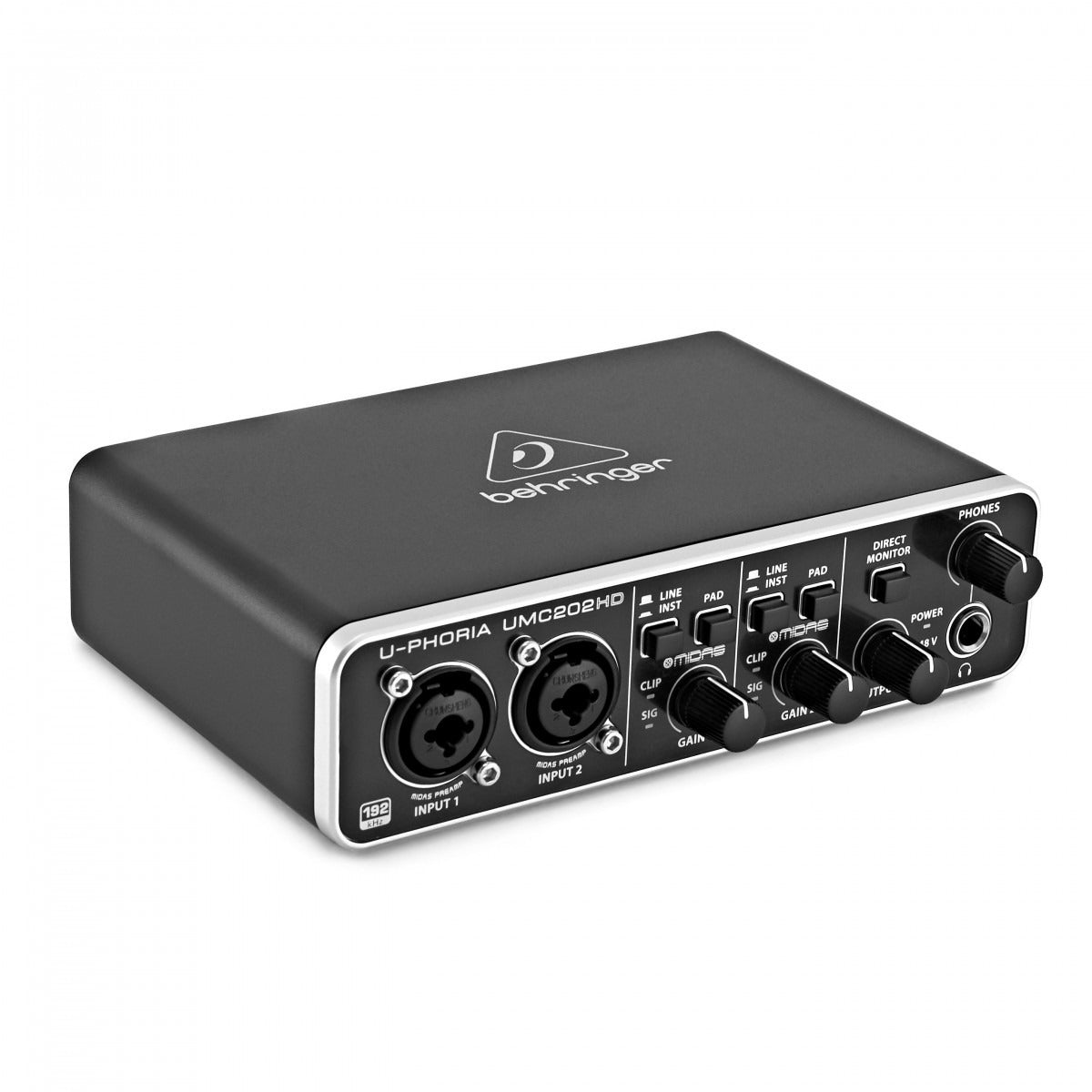

Behringer U-PHORIA UMC202HD USB Audio Interface

Full Description

Audiophile-grade design

Engineered to deliver professional results, the UMC202HD features outstanding 192kHz sound resolution for even the most strenuous pieces of music. In addition to absolute resolution, the interface also includes MIDAS-designed mic preamps to provide true high-quality audio in both live and stage settings. The premium-grade preamps deliver the utmost sonic accuracy thanks to the integrated AD/DA converters that provide up to 192Khz audio resolutions. Whether you're capturing vocal or instrument recordings, the UMC02 delivers the utmost sonic accuracy.

Ideal for home recording and pocasts

The compact interface is ideal for home recording applications thanks to the portable design and plug-and-play compatibility. The integrated ultra-low latency I/O provides optimised audio performance, ideal for capturing studio-grade audio recordings. It also provides seamless integration for use with your favourite DAW. The simple yet elegant design features a metal chassis for optimal durability, and is powered directly by USB, eliminating the need for external power supplies.

Convenient monitoring options

All U-PHORIA models provide a powerful headphone output with level control, Direct Monitor select, status, signal and Clip LED and are powered via your computer's USB port so they're ready to go wherever you go. The UMC202HD delivers zero-latency monitoring allowing you to hear yourself as your record without any delays. Monitoring your sound is important for vocal/instrument recording - ensuring your levels are correct and maintained through the recording process. The interface is compatible with most popular DAWs and is powered via USB-bus - meaning no need for external power supplies!

Features

• 2 x 2 USB 2.0 audio interface ideal for microphones & instruments
• Audiophile 24-bit/192kHz resolution
• Compatible with wide variety of popular recording software
• Streams 2 x inputs/outputs with ultra-low latency
• 2 x MIDAS designed mic preamplifiers with +48V phantom power
• Zero-latency direct monitoring while monitoring
• Powerful phones output with level control & direct monitor select
• Status, signal & clip indications
• USB port for connection & power
• Impact resistant metal chassis

Specifications

• Input
  • Preamp: 2 x MIDAS Design
  • Type: 2 x XLR/TRS Combo Connector (Mic/Line/Instrument)
  • Input Level Attenuation: 2 x Pad Switch
  • Frequency Response: 10Hz - 50kHz (0 / -3 dB)
  • Impedance: Mic In: 3kΩ / Instrument In: 1MΩ
  • Max Input Level: Mic: -4 dBu / Line: +20 dBu / Instrument: -3 dBu
  • Phantom Power: +48 V Switchable
• Output
  • Type: 1 x 1/4" Stereo (Phones), 2 x 1/4" TRS (Line Out)
  • Frequency Response: 10Hz - 43kHz (0 / +0.3 dB)
  • Max Output Level: +3 dBu
• System Data
  • Dynamic Range: 110 dB, A-Weighted
  • Frequency Response: 10Hz - 43kHz (0 / +0.3 dB)
• Monitoring
  • Direct Monitor Control: Direct Monitor Switch
• Security Lock
  • Kensington Security Lock: Yes
• Digital Processing
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
• Computer Bus Connectivity
  • Type: USB 2.0, Type B
• Software Support
  • Operating Systems: Mac OS X, Windows XP or Higher
  • Drivers: Mac: No Driver Required / CoreAudio Supported. Windows: Available as Download From Behringer
• Power Supply: USB Connector (Bus-Powered From Computer)
• Power Consumption: Max 2.5W
• Weight: 500 g
• Dimensions
  • Height: 46.45 mm
  • Width: 170 mm
  • Depth: 125 mm
