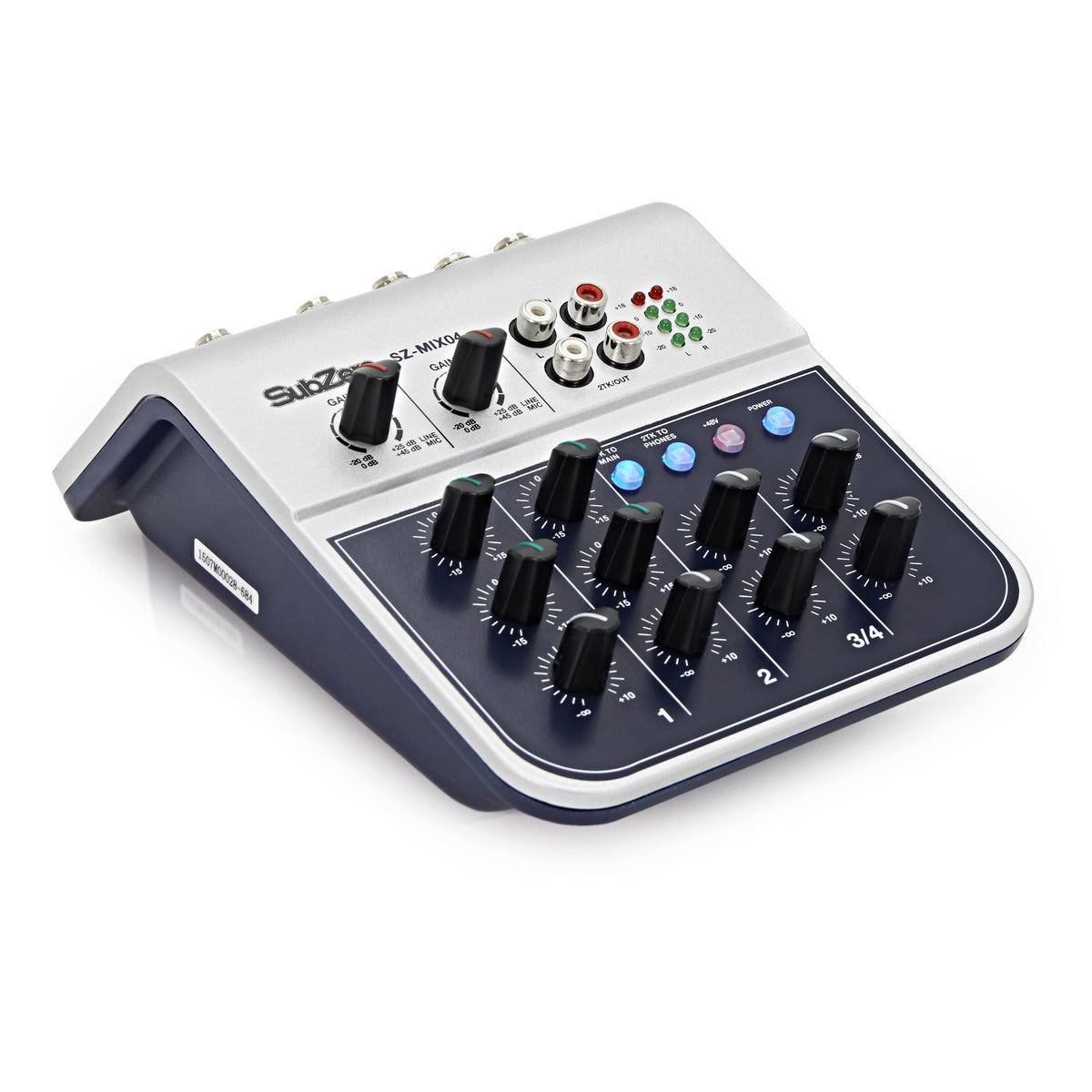

Chanel Mini Mixer

Specifications

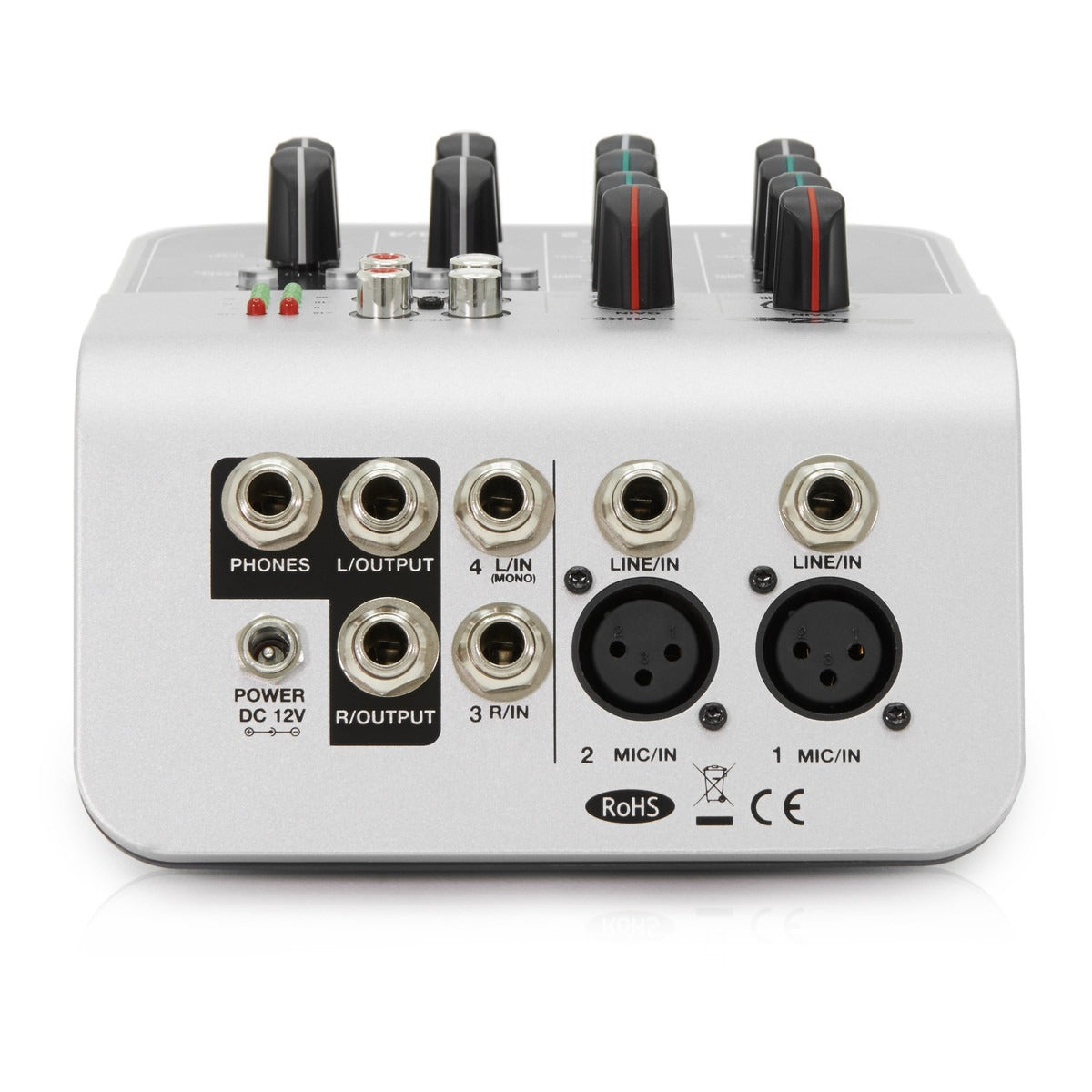

• Mic Inputs: 2 x XLR
• Jack Line Inputs: 2 x 1/4"
• EQ: 2 band EQ, 15dB EQ at 80Hz & 12KHz
• Headphones: Out level control
• RCA: Input/output
• Send: Auxiliary
• LED: 4-band level indicator
• Frequency Response: 20Hz to 20kHz
• Total Harmonic Distortion:
• Mic Input Gain Range: -20dB to +45dB
• Line Input Gain Range: -20dB to +25dB
• Equalization Range: HI: 15dB@12kHz, LOW: 15dB@80Hz
• Max Output: +21dB
• Input Impedance: Mic: 2.3k balanced, Line: 20k balanced, CD/RCA: 24k unbalanced
• Phantom Power: +48VDC (V)
• Power Supply: DC12V
• Dimensions: W 140mm x D 190mm x H 75mm
