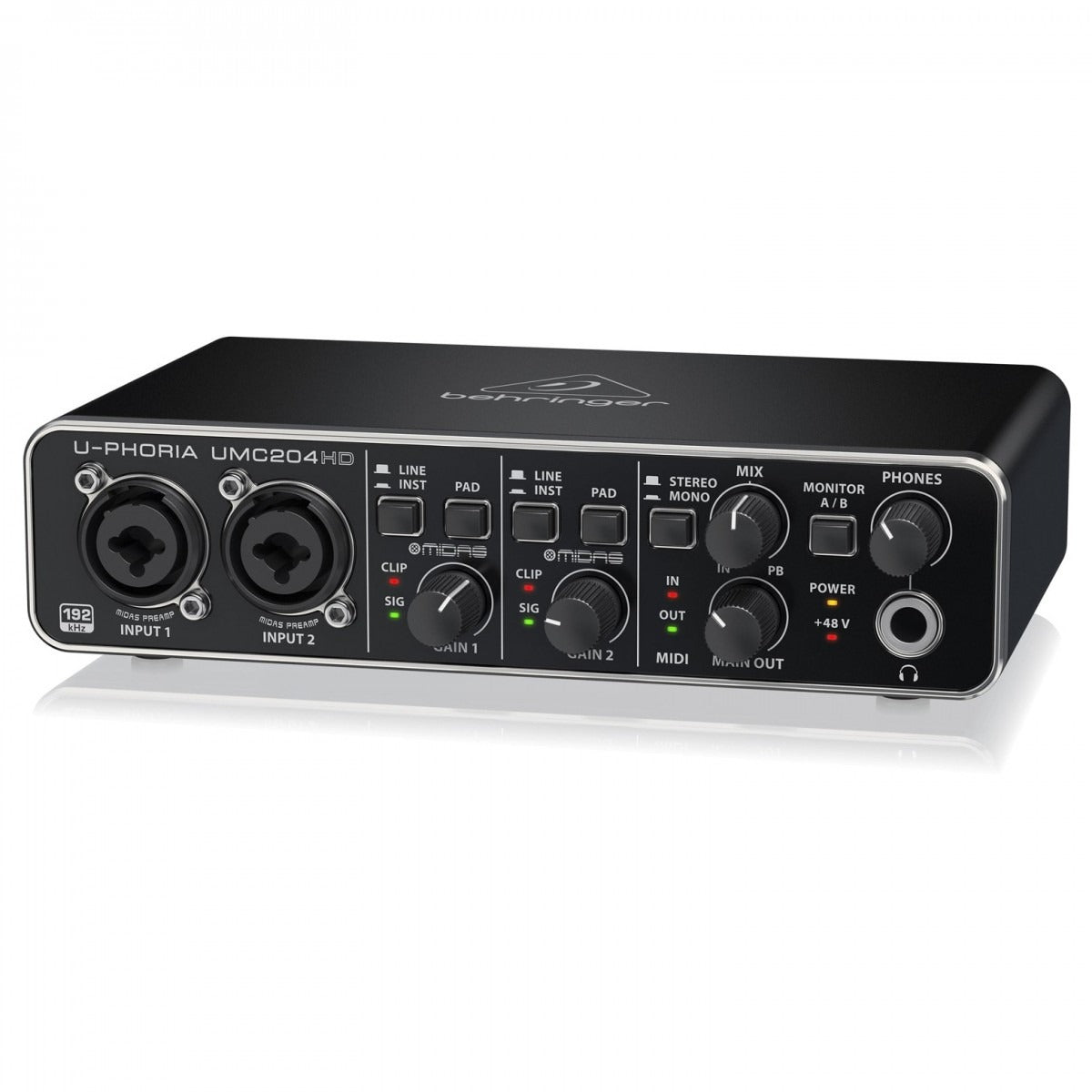

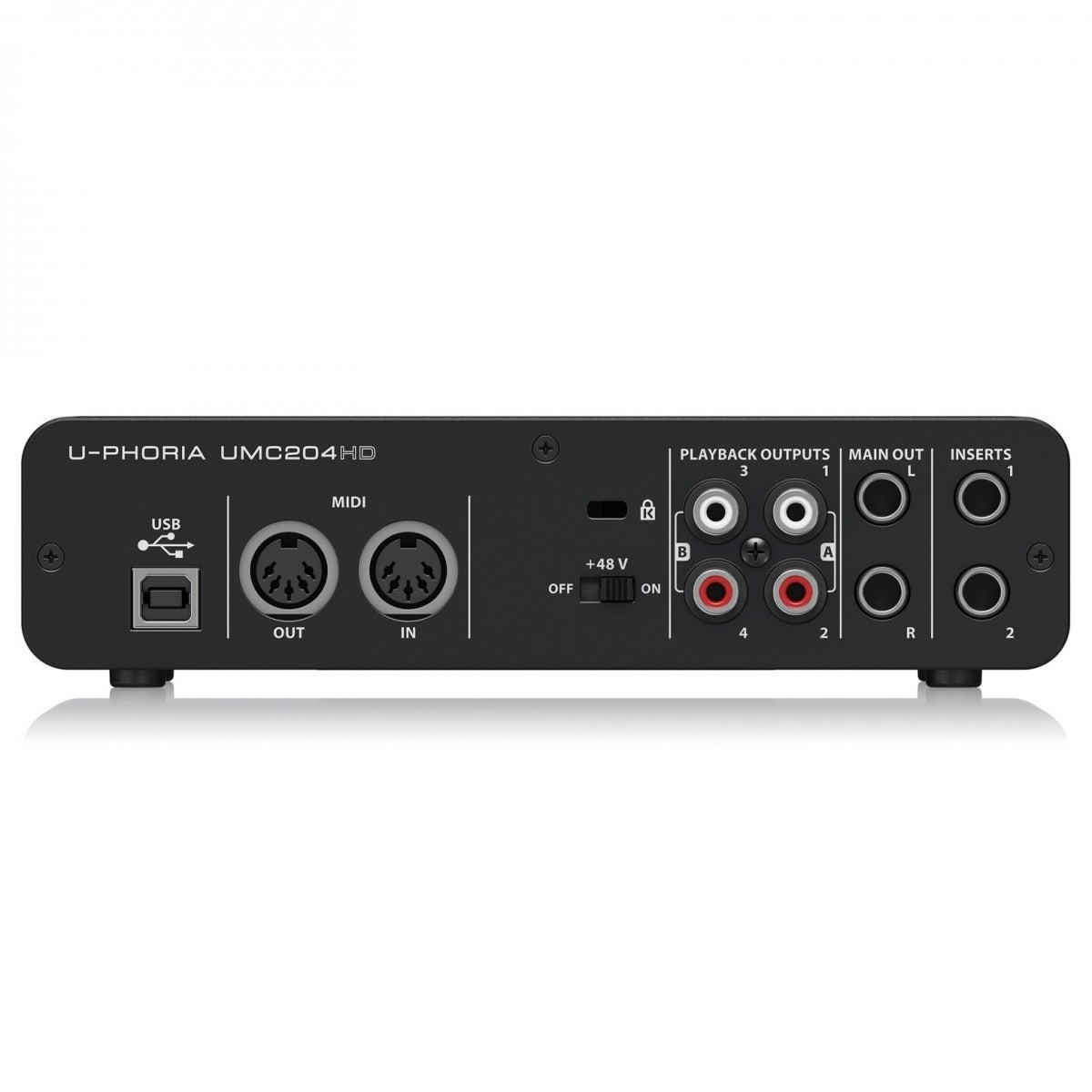

Behringer U-PHORIA UMC204HD USB Audio Interface

Full Description

Audiophile Quality Components

Engineered to deliver professional results, the UMC204HD features outstanding 192kHz sound resolution for even the most strenuous pieces of music. In addition to absolute resolution, the interface also includes MIDAS designed mic preamps to provide true high-quality audio in both live and stage settings. With zero-latency monitoring, users can monitor their performance as they play with no delay in the returning signal.

Features

• 2 x 4 USB 2.0 audio interface ideal for microphones & instruments
• Audiophile 24-bit/192kHz resolution
• Compatible with wide variety of popular recording software
• Streams 2 x inputs/ 4 x outputs & 1 x MIDI I/O with ultra-low latency
• 2 x MIDAS designed mic preamplifiers with +48V phantom power
• Zero-latency direct monitoring while monitoring
• Input/playback mix control & stereo/mono switch
• Powerful phones output with level control & monitor A/B source select
• Status, signal & clip indications
• USB port for connection & power
• Impact resistant metal chassis

Specifications

• Input
  • Preamp: 2 x MIDAS Design
  • Type: 2 x XLR/TRS Combo Connector (Mic/Line/Instrument)
  • Input Level Attenuation: 2 x Pad Switch
  • Frequency Response: 10Hz - 50kHz (0 / -3 dB)
  • Impedance: Mic In: 3kΩ / Instrument In: 1MΩ
  • Max Input Level: Mic: -4 dBu / Line: +20 dBu / Instrument: -3 dBu
  • Phantom Power: +48 V Switchable
• Output
  • Type: 1 x 1/4'' Stereo (Phones), 2 x 1/4'' TRS (Main Line Out), 4 x RCA (Playback Line Out)
  • Frequency Response: 10Hz - 43kHz (0 / +0.3 dB)
  • Max Output Level: +3 dBu
• System Data
  • Dynamic Range: 110 dB, A-Weighted
  • Frequency Response: 10Hz - 43kHz (0 / +0.3 dB)
• Inserts
  • Type: 2 x 1/4'' TRS
  • Impedance: 100Ω Send / 10kΩ Return
  • Max Input Level: +3 dBu
• MIDI I/O
  • Type: 5-Pin DIN; 1 In, 1 Out
• Monitoring
  • Direct Monitor Control: Mix Balance Control (Input <> Playback)
  • Headphones DJ Cueing: Monitor A/B Switch (Out 1-2/3-4 Select)
• Security Lock
  • Kensington Security Lock: Yes
• Digital Processing
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
• Computer Bus Connectivity
  • Type: USB 2.0, Type B
• Software Support
  • Operating Systems: Mac OS X, Windows XP or Higher
  • Drivers: Mac: No Driver Required / CoreAudio Supported. Windows: Available as Download From Behringer
• Power Supply: Included USB Connector (Bus-Powered From Computer)
• Power Consumption: Max 2.5W
• Weight: 600 g
